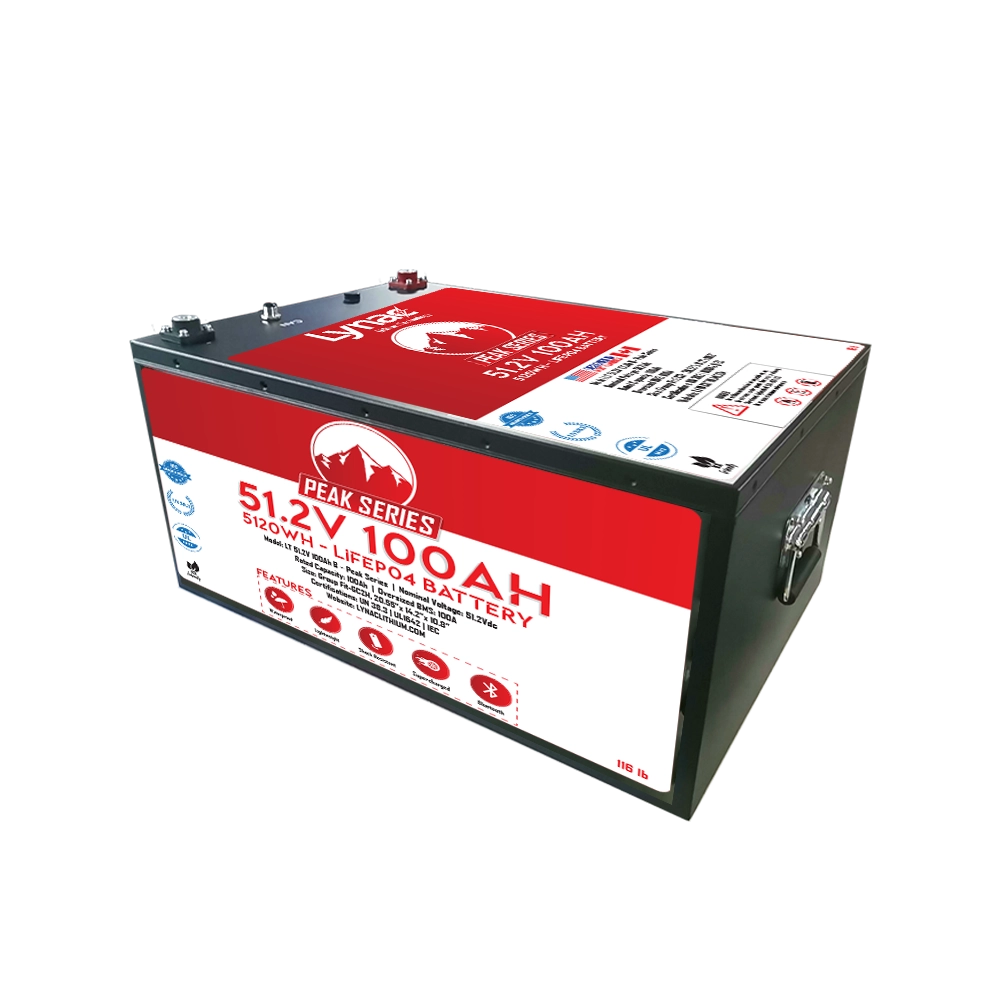

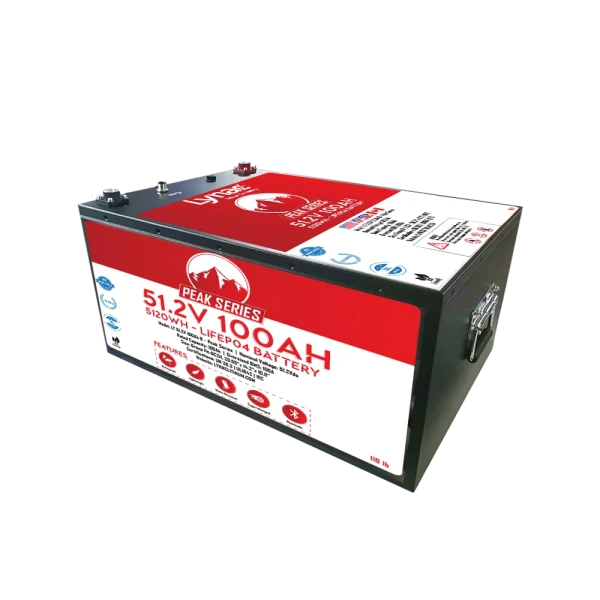

LT 51.2V 100Ah B- Peak Series

ELITE 15A 57.6V Charger - Onboard

In stock

SKU: 12-600120 Categories: , ,
Description

Oversized Premium Software 200A BMS – Solid Grade A+ 26650 Cylindrical Cell Construction – Bluetooth/ Canbus Monitoring – Low Temp Charge Protection –  Sealed IP 65 4x GC2H Size Case – Removable Top – Designed to Deliver Peak Power Output with Premium Features – Simple Drop-In Replacement for Electric Boats, Golf Carts and Off Grid Solar – will severely boost performance while saving a ton of weight and space.

Battery Spec's

Download PDF Datasheet

Product Model: LT 51.2V 100Ah B - Peak Series
Rated Capacity: 51.2V 100Ah 5120Wh
Nominal Voltage: 51.2 Vdc
Cycle Life: 2000 @ 0.2C (100% DOD), 6000 @ 0.2C (80% DOD), 10000 @ 0.2C (50% DOD)
Dimensions: Group Fit: 4x GC2H, 20.55" X 14.2" X 10.8" (522 x 361 x 275mm)
Weight: 116Ibs (52.8kg)
Battery Management System: Charge Balancing, Current, Voltage, Short Circuit, Temperature, Low Temp Charge Protect, Software Adjustable Set Points
Cells: IFR26650 3.2V 3600mAh LiFePO4 16S 27P
Charging Method: Constant Current - Constant Voltage (CC - CV): (0.2C to 57.6Vdc) - (57.6Vdc to 0.02C)
Voltage Limits: Charge: 57.6Vdc, Discharge: 40Vdc
Current Limits: Charge: 100Adc, Discharge: 100Adc continuous
Temperature Limits: Charge 0 ~ 45°C, Discharge -20 ~ 55°C, Storage -20 ~ 55°C
Connectivity: Parallel: 4 per Bank (51.2Vdc)
Terminal Connector: M8 (5/16") Lug - Brass Bolt, Torque = 28N.m = 21ft.lbs

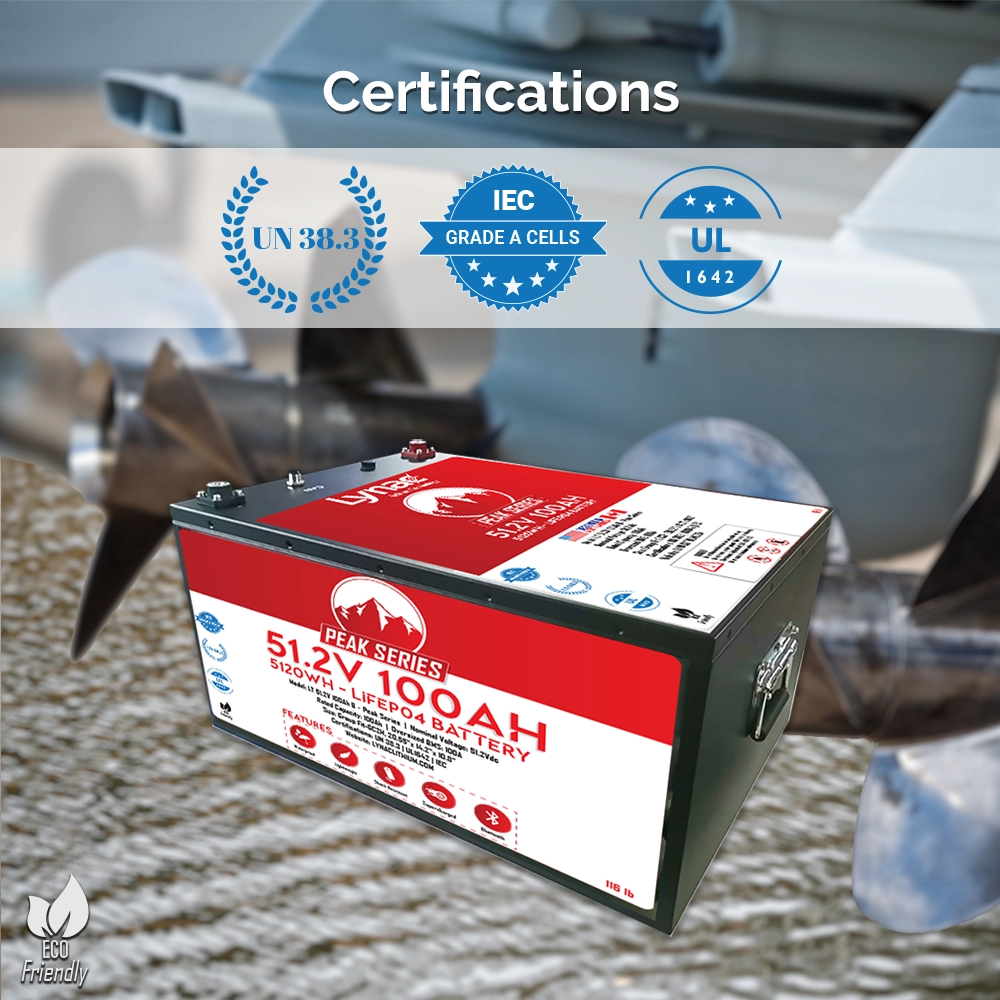

Certifications: UN 38.3, IEC626619-3600, 3.2V26650 CB IEC62133
Ingress Protection: IP65

Battery Features
WaterProof

WaterProof

Battery was designed to withstand splash damage and/or brief water submersion.

FeatherWeight

FeatherWeight

Battery offers half the weight of its lead-acid counterpart.

ShockResistant

Shock Resistant

Battery is vibration tested and designed with solid casing to help withstand shock damage.

What is Peak Series ?

Pinnacle of Power output for LFP Smart batteries. The Peak Series is engineered to bring you a compact, drop-in ready boost for Electric Boats - Golf Carts - Trolling Motors. Our high output BMS comes loaded with all the latest monitoring and protection features that will not be beat.

Warranty

If each Lynac Lithium Technology battery product does not sufficiently meet the outlined performance specifications, a full refund is to be given once the product is returned, inspected, and proven faulty.
Seller assumes a 3-year manufacturer's warranty followed by a 4 year prorated warranty totalling 7 years.
Each product must be registered and proven to be used and maintained according to the recommended operational and maintenance parameters that are to be agreed upon at the time of installation.

To register a product Click Here

UN 38.3 Certification

Did you know the U.S. Department of Transportation and many international regulatory bodies require lithium batteries are certified to UN38.3 prior to transport?

Shipping Standards For Lithium Batteries

Lithium batteries must have safeguards built in to withstand the physical and environmental hazards encountered not only during shipping but throughout their lifetimes. UN38.3 is the prevailing United Nations standard that lithium batteries must meet to receive certification for safe transport. The U.S. Department of Transportation and many international regulatory bodies require lithium batteries are certified to UN38.3 prior to transport.

Lithium batteries must undergo a rigorous series of tests to meet UN38.3 performed by an approved independent testing laboratory. Batteries must not rupture, leak, disassemble, or catch fire to receive certification. There are eight tests that that must be passed for a lithium battery to receive the certification.

Testing For UN38.3 Certification

  1. Altitude Simulation, which means that low-pressure testing simulates unpressurized airplane cargo space at 15,000 meters.
  2. Thermal Testing, ensures the cell and battery remain sealed through rapid and extreme temperature changes.
  3. Vibration Testing meaning it simulates vibration during transport, followed by Shock which assesses cells and battery's ability to withstand cumulative physical shock.
  4. External Short Circuit, which assesses a battery's ability to withstand prolonged external short circuit conditions.
  5. Impact & Crush. This simulates a battery's ability to withstand mechanical abuse that could create an internal short circuit.
  6. Overcharge aka evaluating the battery's ability to withstand overcharge conditions, and finally, Forced Discharge, which tests the battery's ability to withstand its stated maximum discharge rating.

The responsibility to ensure that batteries meet the UN standard falls upon the seller and unfortunately, some products in the marketplace do not meet the standard. UN38.3 is an extremely important safeguard for you the customer. A lithium battery could see a 15 year or longer lifetime depending on how often it is discharged and UN38.3 certification should be a primary consideration in your lithium battery purchase.

FAQ

Check out our FAQ to get answers to common LFP questions!
Goto FAQ Page

The Lynac Advantage

Certified Grade A Cells

The highest grade cells give our LFP batteries the quality and performance that you would expect from your LFP battery leader.

Oversized BMS

Oversized Battery Management System (BMS) puts our LFP batteries above and beyond the standard, producing peak power output at maximum efficiency will ensure the highest performance and longest cycle life.

Designed in North America

Lynac Lithium is based in North America where we push the limits of battery innovation by designing and building quality products with your feedback!

Lynac Intel Plus App

Download our Lynac Intel Plus App to take full advantage of your battery!
This is the most powerful Bluetooth App with Extensive Monitoring Features, Adjustable Parameters, and a Remote Kill-Switch for Charging and Discharging.
For more information about our app check out our blog: https://www.lynac.com/lynac-intel-plus-app-review/
